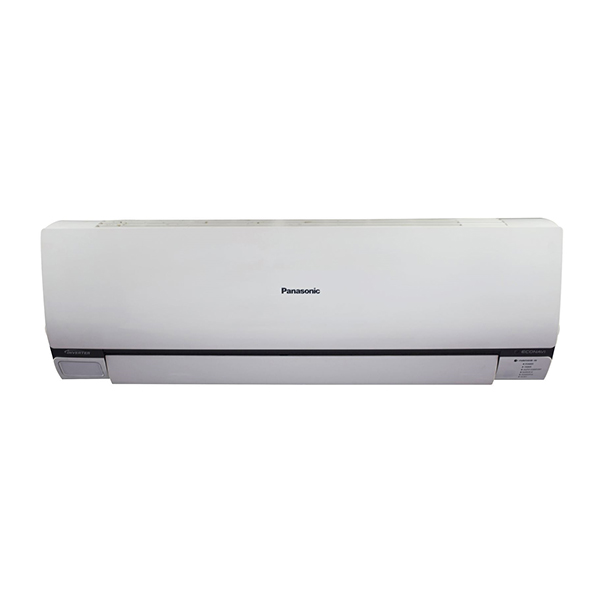

Product Description Of Panasonic Split Inverter AC | CU-S18PKH | 1.5 Tons

Applicable For

• 180 Square Feet ; Height - 10 feet (Except Top Floor)

Model

• Indoor (50Hz) - CS-S18PKH
• Outdoor (50Hz) - (CU-S18PKH)

Phase

• ø - 1

Electrical Data

• Voltage (V) - 220-240 V
• Running Current (A) - 7.0-6.4A
• Power Input (W) - 1.44-1.44
• Air Circulation (Indoor/Hi)
• m³/min. - 17.7
• ft³/min. - 625

Dimensions

• Height (mm) - 290 (619)
• Height (inch) - 11-7/16 (24-3/8)
• Width (mm) - 1,070 (824)
• Width (inch) - 42-5/32 (32-15/32)
• Depth (mm) - 240 (299)
• Depth (inch) - 9-15/32 (11-25/32)

Power Supply

• Indoor

Cleaner Air

• nanoe-G - Yes
• Anti-Bacterial Filter - No
• Odour-Removing Function - Yes
• Removable, Washable Panel - Yes
• Catching Air Purifying Filter - No
• Solar Refreshing Deodorizing Filter - No

Comfort

• ECONAVI - Yes
• Temperature Wave - Yes
• AUTOCOMFORT - Yes
• Inverter Control - Yes
• Mild Dry Cooling - Yes
• Quiet Mode - Yes
• Powerful Mode - Yes
• Soft Dry Operation Mode - Yes
• Personal Airflow Creation - Yes
• Airflow Direction Control (Up Down) - No
• Manual Horizontal Airflow Direction Control - No
• Manual Airflow Direction Control (Left Right) - No
• Sleep Mode Auto-Control - No
• Automatic Operation Mode (Cooling) - Yes

Convenience

• 24-Hour Dual ON OFF Real Setting Timer - Yes
• 24-Hour ON OFF Real Setting Timer - No
• 12-Hour ON OFF Setting Timer - No
• LCD Wireless Remote Control - Yes
• Wired Remote Control - No

Reliability

• Auto Restart - No
• Random Auto Restart (32 Restart Patterns) - Yes
• Blue Fin Condenser - Yes
• Long Piping (Numbers indicate the maximum pipe length) - 15m
• Top-Panel Maintenance Access - Yes
• Self-Diagnostic Function - Yes

NOTE - Caution For CS-S10/S13/S15/S18/S24PKH (Important) Please do not use copper pipes that are less than 0.6mm in thickness. * When pipes are not extended from the standard pipe length, the required amount of refrigerant is already in the unit.
